800 SERIES

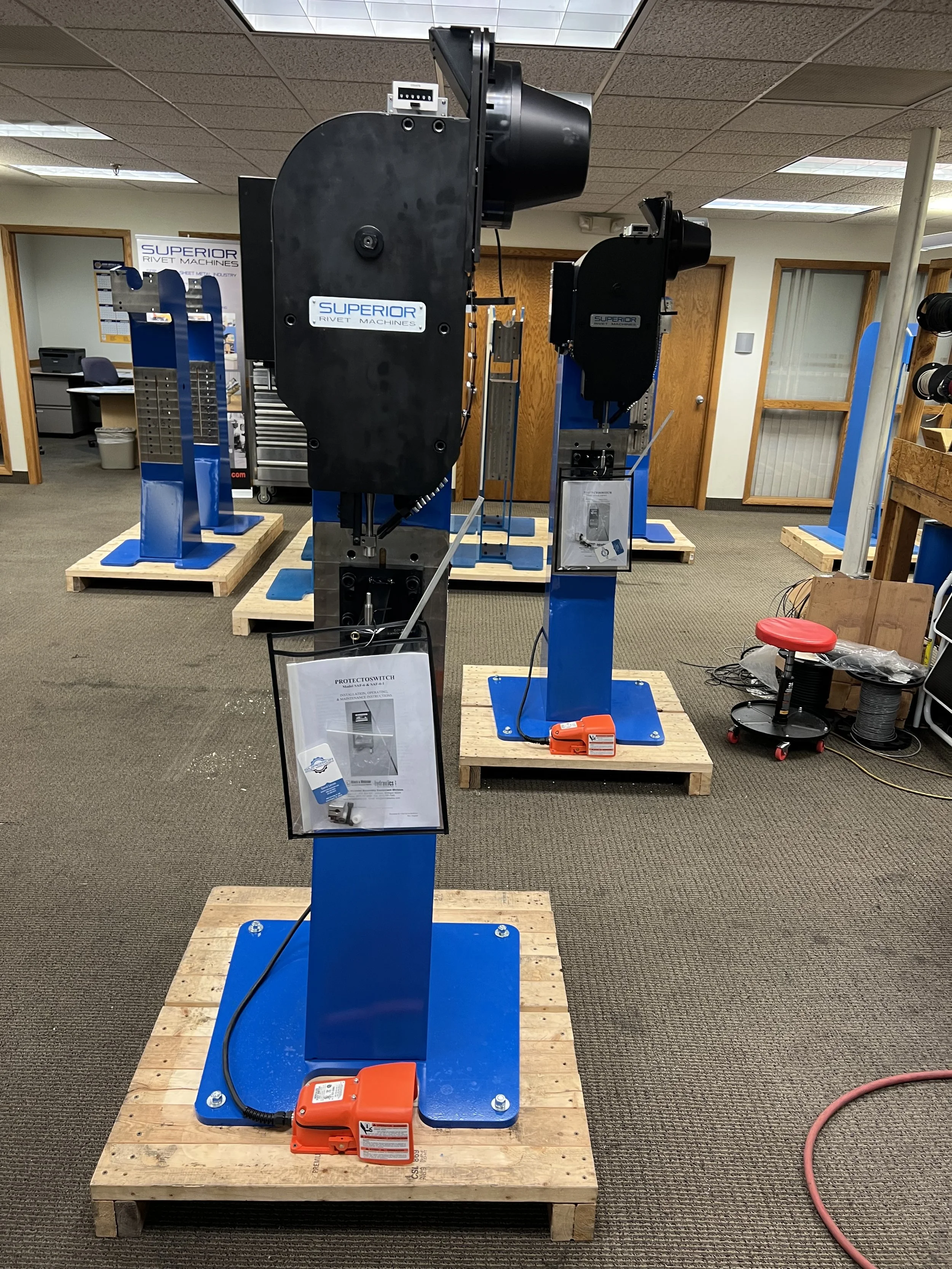

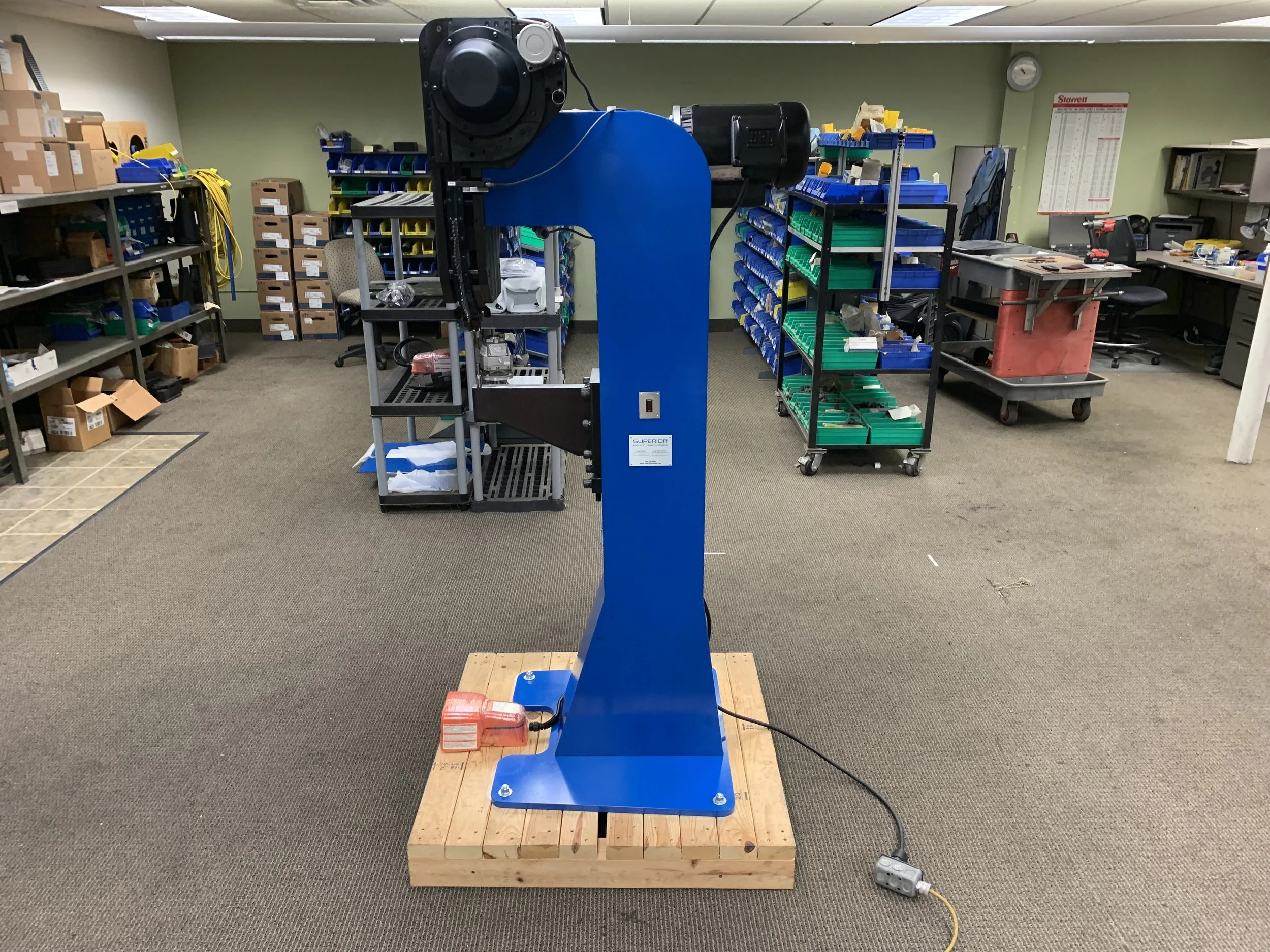

The Revolution 800 head is our strongest, most powerful cam-driven machine
With a larger, more rigid, welded frame made from 5/8” thick steel US Steel, the Revolution 800 can meet many of the toughest challenges.
The larger diameter cam accommodates many long rivet applications. Typically, these machines are used for situations when power is necessary to set large capability applications such as larger rivets, stainless steel rivets, or solid rivets.
They remain single-phase, all-electric power but may need a higher amp outlet. It is Superior's work-horse machine made for our customers’ toughest demands.
Rivet Diameter Capacity
.125 - .3125" (semi-tubular)
Rivet Length Capacity
1.25"
Stroke Length
3.75"
Power
100% Electric
No pneumatics or hydraulics
Cycle Time
1/3 Second
